Product Structure Features

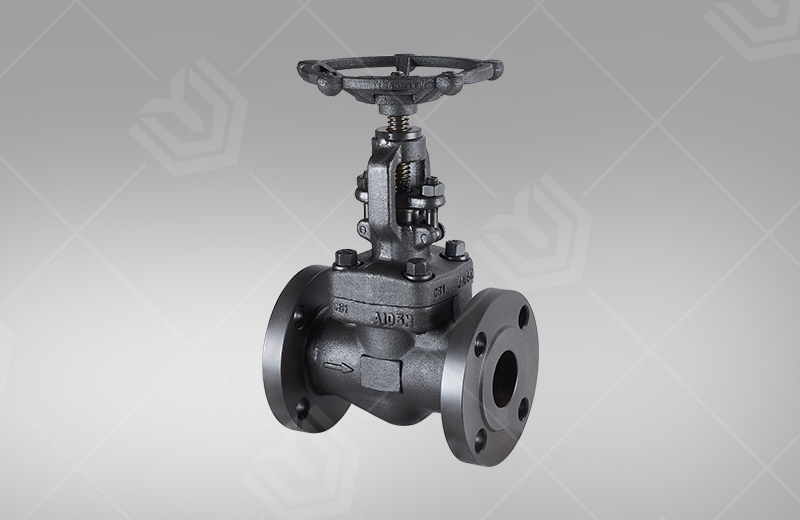

valve body and bonnet are manufactured by forged steel materials, such as ASTM A105, A182 F11, F5, F304, F304L, F316, F316L, etc. Valves are mainly used in firepower plants for control of air, water, steam and other corrosive flows.
The main structure features include:
opening and closing；
surface without any abrasion when opening and closing ,with long life.
structure , easy for repairing.
valve is full opened, the sealing surface suffered small friction from the working medium；
sealing design can be chosen
6.Y pattern body design can be chosen；
seal bonnet or welded bonnet can be chosen;
loaded packing can be chosen;
emission packing can be chosen according to ISO 15848 requirement
Main external connection dimensions and weight
| NPS（in） | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | ||
L(RF) L1(BW) | 150Lb | 108 | 117 | 127 | 140 | 165 | 203 | |
| 300Lb | 152 | 178 | 203 | 216 | 229 | 267 | ||
| 600Lb | 165 | 190 | 216 | 229 | 241 | 292 | ||
| H(ON) | 150Lb～300Lb | 166 | 171 | 207 | 240 | 258 | 330 | |
| 600Lb | 171 | 207 | 240 | 258 | 330 | 380 | ||
| W | 100 | 100 | 125 | 160 | 160 | 180 | ||
| WT (Kg) | 150Lb | RF | 4.5 | 6.9 | 9.8 | 13.5 | 19.5 | 28.0 |
| BW | 2.3 | 3.6 | 7.8 | 8.2 | 12.0 | 15.0 | ||
| 300Lb | RF | 4.8 | 7.7 | 11.0 | 16.8 | 21.2 | 32.6 | |
| BW | 2.8 | 4.0 | 8.5 | 9.2 | 12.6 | 16.8 | ||
| 600Lb | RF | 5.6 | 7.8 | 12.5 | 17.0 | 23.5 | 38.8 | |
| BW | 3.4 | 4.7 | 9.2 | 10.5 | 13.3 | 18.9 | ||
